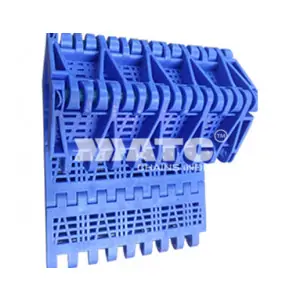

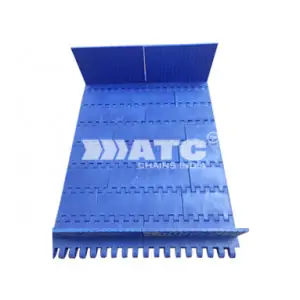

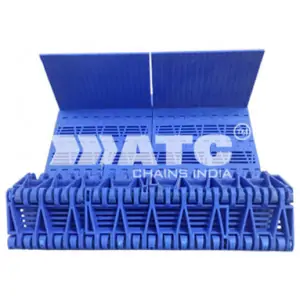

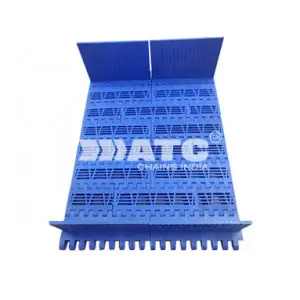

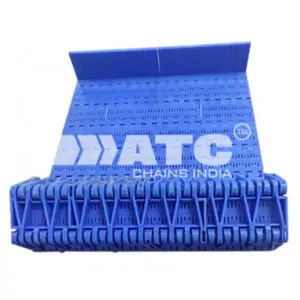

A-Series Modular Belt

Call Now
+91- 951XXXX991
WhatsApp
+91- 951XXXX990
AvailabilityIn Stock
CategoryPlastic Belt
Payment MethodsCash, COD, DirectDebit
Rated 0.0/5 based on 0 customer review
5
0
0%
4
0
0%
3
0
0%
2
0
0%
1
0
0%

A-Series Modular Belt Details

MAIN APPLICATIONFOOD TRANSPORT as well as in packaging machines.
MATERIALPOM
MATERIALPP
WORKING LOAD(25°c)21590 N /MPOM 8800 N /MPP
WORK TEMP
PITCH=50.8 MMWIDTH=152 MM

Standard Width W = 152.4N

Non-standard Width W = 152.4N+16.9*n

mm152.4304.8457.2609.6762914.41066.81219.21371.61524152.4N

Non standard width w =152.4*N +16.9n

Non standard width , starts from 152.4, with 16.9mm increments

Sprockets

CodeTeeth No.PDODBore/mm
l-A-8-258132.713025
l-A-8-3030
1-A-8-4040
l-A-10-2510164.4161.725
1-A-10-3030
l-A-10-3535
l-A-10-4040
1-A-12-2512196.3193.625
1-A-12-3030
1-A-12-3535
l-A-12-4040
1-A-14-3014228.3225.930
l-A-14-3535
l-A-14-4040
1-A-14-4545
