MATERIAL | SLAT WIDTH (INCH) | SLAT WIDTH (MM) | SLAT THICKNESS | PITCH MM | PITCH INCH |
S.S.430 | 802M-K450 | 114 | 3 MM | 38.1 MM | 1.5 INCH |
802M-K750 | 190 | 3 MM | 38.1 MM | 1.5 INCH |
SPROCKET MOLDED
S.S. STRAIGHT RUNNING CHAIN

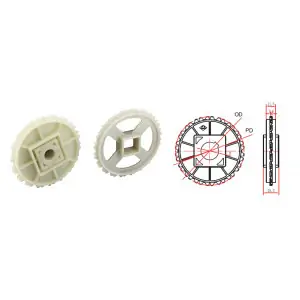

MOLDED SPROCKET FOR S.S. STRAIGHT RUNNING CHAIN
NO | ITEM | OD – MM |
1 | Sprocket 21 Teeth | 129 |
2 | Sprocket 25 Teeth | 153 |
SPROCKET – S.S. SIDEFLEX WITH TAB
SPROCKET- SIDEFLEX WITHOUT TAB
MOLDED SPROCKET FOR S.S. SIDEFLEX WITHOUT TAB CHAIN
NO | ITEM | OD – MM |
1 | Sprocket 21 Teeth | 129 |
2 | Sprocket 25 Teeth | 153 |

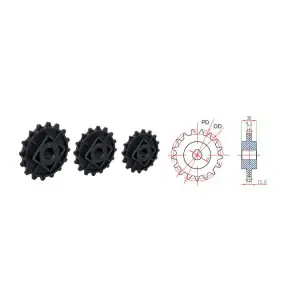

SPROCKET SOLID
S.S. STRAIGHT RUNNING CHAIN
SPROCKET – S.S. SIDEFLEX WITH TAB
SPROCKET- SIDEFLEX WITHOUT TAB
SS / THERMOPLASTIC DOUBLE HING CHAIN SPROCKET
1 | 821/802-17-20-SLD/80 821/802-17-25-SLD/80 821/802-17-30-SLD/80 | Sprocket 17 Teeth solid | 80MM | 104 |
2 | 821/802-19-20-SLD/80 821/802-19-25-SLD/80 821/802-19-30-SLD/80 | Sprocket 19 Teeth solid | 80MM | 117 |
3 | 821/802-21-25-SLD/80 821/802-21-30-SLD/80 821/802-21-35-SLD/80 | Sprocket 21 Teeth solid | 80MM | 129 |
4 | 821/802-23-25-SLD/80 821/802-23-30-SLD/80 821/802-23-35-SLD/80 | Sprocket 23 Teeth solid | 80MM | 153 |
5 | 821/802-25-25-SLD/80 821/802-25-30-SLD/80 821/802-25-35-SLD/80 | Sprocket 25 Teeth solid | 80MM | 153 |
