SS 304 Straight Running Chain Single Hinge

Call Now
+91- 951XXXX991
WhatsApp
+91- 951XXXX990
AvailabilityIn Stock
CategoryFlat Top Chains
Payment MethodsCash, COD, DirectDebit
Rated 0.0/5 based on 0 customer review
5
0
0%
4
0
0%
3
0
0%
2
0
0%
1
0
0%

SS 304 Straight Running Chain Single Hinge Details

MATERIALSLAT WIDTH (INCH)SLAT WIDTH (MM)SLAT THICKNESSPITCH MMPITCH INCH
S.S. 304K-2.00501.5 MM25.4 MM1 INCH
K-3.2582.62.5 MM38.1 MM1.5 INCH
K-3.2582.63 MM38.1 MM1.5 INCH
K-3.5088.92.5 MM38.1 MM1.5 INCH
K-3.5088.93 MM38.1 MM1.5 INCH
K-4001013 MM38.1 MM1.5 INCH
K-4.50114.33 MM38.1 MM1.5 INCH
K-6.00152.43 MM38.1 MM1.5 INCH
K-7.501903 MM38.1 MM1.5 INCH

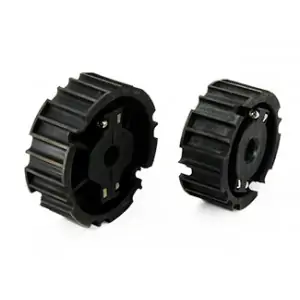

 SPROCKET (MOULDED)

NOITEMOD – MM
1Sprocket 15 Teeth92.34
2Sprocket 16 Teeth98.50
3Sprocket 17 Teeth104.65
4Sprocket 18 Teeth110.80
5Sprocket 19 Teeth117.00
6Sprocket 21 Teeth129.00
7Sprocket 25 Teeth153.00
8Sprocket 32 Teeth 8″196.99



NOITEMOD – MM
1Sprocket 17 Teeth104.65
2Sprocket 21 Teeth129
3Sprocket 25 Teeth153

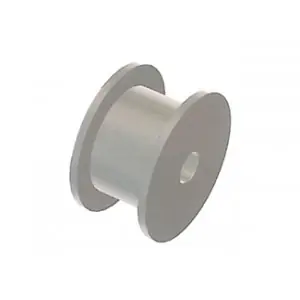

Idler pulley solid

NOITEMOD - MM
1Idler pulley 17 Teeth solid104.65
2Idler pulley 21 Teeth solid / nylone129
3Idler pulley 25 Teeth solid153

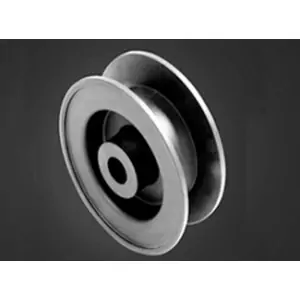

 IDLER PULLEY NYLONE

NOITEMOD - MM
1Idler pulley 17 Teeth solid104.65
2Idler pulley 21 Teeth solid / nylone129
3Idler pulley 25 Teeth solid153
