T-400 Modular Belt

Call Now
+91- 951XXXX991
WhatsApp
+91- 951XXXX990
AvailabilityIn Stock
CategoryPlastic Belt
Payment MethodsCash, COD, DirectDebit
Rated 0.0/5 based on 0 customer review
5
0
0%
4
0
0%
3
0
0%
2
0
0%
1
0
0%

T-400 Modular Belt Details

MAIN APP.Food,beverage,pharmacy, chemical,mold parts and packaging machine conveyor
MATERIALPOM
MATERIALPP
WORKING LOAD(25°c)10500 N /M(POM)
OPEN AREA16 %
WORK TEMP-40°c to +90°c
PITCH=19.5 MMWIDTH=76.2 MM

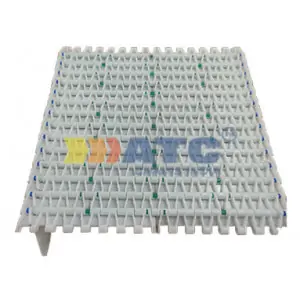

T-400 FLAT TOP MODULAR BELT

MAIN APPLICATIONAll kind glass bottles & packaging machine conveyor
PITCH19.05mm
PIN DIA4MM
COLORWHITE / BLUE / GREY
STANDARD SIZEWIDTH-101.2 / 152.4 (±19.2MM)
Material - PP TEMP+1c - +98c acid proof Working load - 9610N/M
Material - POM Temp-40c to + 90c Working load - 17280n/m
Material – PKs Temp+1c to +265c MOQ for PKs 100Mtr + Working load –



MM76.6153230306383460537602

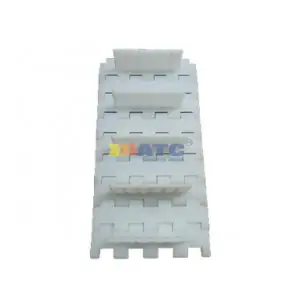

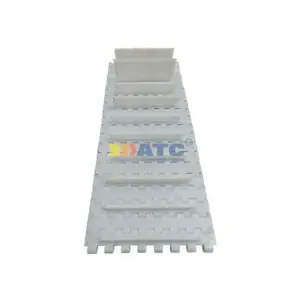

T-400 FLAT TOP CLEAT MODULAR BELT

MAIN APPLICATIONAll kind glass bottles & packaging machine conveyor
PITCH19.05mm
PIN DIA4MM
COLORWHITE / BLUE / GREY
STANDARD SIZEWIDTH-101.2 / 152.4 (±19.2MM)
Material - PP TEMP+1c - +98c acid proof Working load - 9610N/M
Material - POM Temp-40c to + 90c Working load - 17280n/m
Material – PKs Temp+1c to +265c MOQ for PKs 100Mtr + Working load –
SIDE WALL HEIGHT25 / 50
CLEAT HEIGHT10 TO 50



MM76.6153230306383460537602

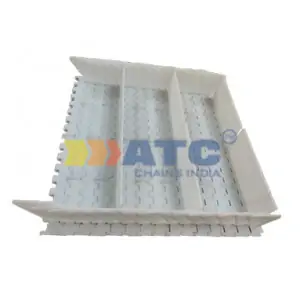

T-400 BUCKET MODULAR BELT

MAIN APPLICATIONAll kind glass bottles & packaging machine conveyor
PITCH19.05mm
PIN DIA4MM
COLORWHITE / BLUE / GREY
STANDARD SIZEWIDTH-101.2 / 152.4 (±19.2MM)
Material - PP TEMP+1c - +98c acid proof Working load - 9610N/M
Material - POM Temp-40c to + 90c Working load - 17280n/m
Material – PKs Temp+1c to +265c MOQ for PKs 100Mtr + Working load –
SIDE WALL HEIGHT25 / 50
CLEAT HEIGHT10 TO 50



MM76.6153230306383460537602

T-400 SPROCKET , GUIDE STRIP , SHAFT RING



PRODUCT CODETYPETEETHPCDODBORE /mmPITCH
T300/400-10-SLD-20RSOLID1061.6632015.2
T300/400-10-SLD-25R25
T300/400-12-SLD-25RSOLID1273.677.625
T300/400-12-SLD-30R30
T300/400-12-SLD-35R35
T300/400-16-MLD-25RMOULDED SOLID1697.6

101.6

25
T300/400-16-MLD-30R30
T300/400-16-MLD-35R35
T300/400-18-SLD-25RSOLID18109.7113.625
T300/400-18-SLD-30R30
T300/400-18-SLD-35R35
T300/400-20-SLD-25RSOLID20121.812625
T300/400-20-SLD-30R30
T300/400-20-SLD-35R35
T300/400-24-SLD-25RSOLID24145.914925
T300/400-24-SLD-30R30
T300/400-24-SLD-35R35
T300/400-25-SLD-30RSOLID3215215630
T300/400-25-SLD-40R40

T-300/T-400 Sprockets

Mat.: Polyamide PA6, Machined, high precision, matching well

CodeTeeth NoPDODBore/mm
1-T-300/400 -10-201061.66320
1-T-300/400 -10-2525
1-T-300/400 -12-251273.677.625
1-T-300/400 -12-3030
1-T-300/400 -12-3535
1-T-300/400 -16-251697.6101.625
1-T-300/400 -16-3030
1-T-300/400 -16-3535
1-T-300/400 -18-2518109.7113.625
1-T-300/400 -18-3030
1-T-300/400 -18-3535
1-T-300/400 -20-2520121.812625
1-T-300/400 -20-3030
1-T-300/400 -20-3535
1-T-300/400 -24-2524145.914925
1-T-300/400 -24-3030
1-T-300/400 -24-3535
1-T-300/400 -25-302515215630
1-T-300/400 -25-4040



PRODUCT CODED2BOREPRODUCT CODED1 (ID)D2 (ID)BORE TYPE
SHAFT LOCKING RING - SQUARE84.5SQUARE BORE 40X40SHAFT LOCKING RING - ROUND15mm,18mm,20mm,
25mm,30mm
84.5ROUND



WEAR ATC - W5ATC -W12 - (40*10)ATC - W3 (ALU+COVER))
