MAIN APPLICATION | Food,beverage N Pharmaceutical industry etc,such as transportations of bottles. |
MATERIAL | POM |
MATERIAL | PP |
WORKING LOAD(25°c) | 10500N /M |
WORK TEMP | -40°c to +90°c |
PITCH=15.2 MM | WIDTH=152 MM |
mm | 85 | 170 | 255 | 340 | 425 | 510 | 595 | 680 | 765 | 850 | 85N |
Non standard width W =85*N+10*n
Length L-2*P*N P=Pitch

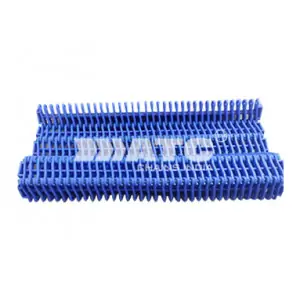

T-1200 FLAT TOP MODULAR BELT
MAIN APPLICATION | All kind glass bottles & packaging machine conveyor |
PITCH | 25.2mm |
PIN DIA | 4MM |
COLOR | WHITE / BLUE / GREY /BROWN |
STANDARD SIZE | WIDTH - 85.3 / 170.8 (± 10 MM) |
Material - PP TEMP | +1c - +98c acid proof Working load - 9610N/M |
Material - POM Temp | -40c to + 90c Working load - 17280n/m |
Material – PKs Temp | +1c to +265c MOQ for PKs 100Mtr + Working load – |
MM | 86 | 172 | 258 | 344 | 430 | 516 | 602 | 687 |

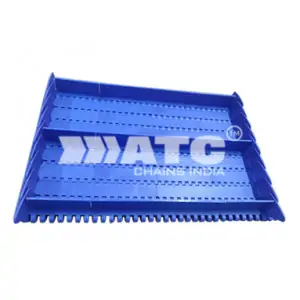

T-1200 CLEATED MODULAR BELT
MAIN APPLICATION | All kind glass bottles & packaging machine conveyor |
PITCH | 25.2mm |
PIN DIA | 4MM |
COLOR | WHITE / BLUE / GREY /BROWN |
STANDARD SIZE | WIDTH - 85.3 / 170.8 (± 10 MM) |
Material - PP TEMP | +1c - +98c acid proof Working load - 9610N/M |
Material - POM Temp | -40c to + 90c Working load - 17280n/m |
Material – PKs Temp | +1c to +265c MOQ for PKs 100Mtr + Working load – |
MM | 86 | 172 | 258 | 344 | 430 | 516 | 602 | 687 |
T-1200 BUCKET MODULAR BELT
MAIN APPLICATION | All kind glass bottles & packaging machine conveyor |
PITCH | 25.2mm |
PIN DIA | 4MM |
COLOR | WHITE / BLUE / GREY /BROWN |
STANDARD SIZE | WIDTH - 85.3 / 170.8 (± 10 MM) |
Material - PP TEMP | +1c - +98c acid proof Working load - 9610N/M |
Material - POM Temp | -40c to + 90c Working load - 17280n/m |
Material – PKs Temp | +1c to +265c MOQ for PKs 100Mtr + Working load – |
ATC CHAINS INDIA is a specialist for manufacturing of conveyor chains components, including plastic and stainless steel flat top chains, Modular belts, other spare parts, such as UHMWPE wear strips, side guards, chains guide, bipods, tripods, brackets, clampls.ect.
With our years of experience, quality products, excellent services we work with worldwide clients from America, Europe, Africa, many countries of Asia. We keep very good business relation with them, and get trusted from them.
Our Products Application
Packaging and conveying industry
Beverage bottling and handling industry
Food and meat processing industry
Chemical industry
Pharmaceuticals industry
Automobile industry
Electrical and electronics industry
Textile industry
Light engineering industry
