CODE | WIDTH | WEIGHT | WORKING LOAD |
MM | KG/M | N | |
K200 | 50 | ||
K250 | 63 | ||
K325 | 82.6 | 0.82 | 2000 |
K350 | 88.9 | 0.87 | |
K400 | 101.6 | 0.95 | |
K450 | 114.3 | 1.00 | |
K500 | 127 | 1.10 | |
K600 | 152.4 | 1.20 | |
K750 | 190.5 | 1.44 |
SPROCKETS
NO.OF TEETH | PD | OD | BORE |
MM | MM | MM | |
17 | 103.7 | 104.7 | /MIN.20 /MAX.40 |
19 | 115.7 | 117 | |
21 | 127.8 | 129 | |
23 | 139.9 | 140.7 | |
25 | 152 | 153 |

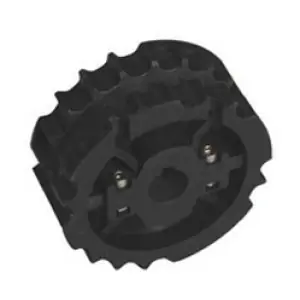

SPROCKET (MOULDED)
NO | ITEM | OD – MM |
1 | Sprocket 17 Teeth | 104.7 |
2 | Sprocket 21 Teeth | 129 |
3 | Sprocket 25 Teeth | 153 |
PLATE MATERIAL : UHMWPE
MAX.SPEED : 80M/MIN LUBRICATION 50M/MIN DRY
COLOR : WHITE/BLACK

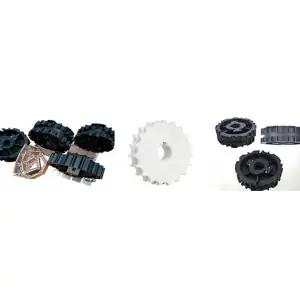

THERMOPLASTIC SINGLE HING STRAIGH CHAIN MOULDED SPROCKET
NO | PRODUCT CODE | ITEM | OD-MM |
1 | 820-17-20-MLD-Grv 820-17-25-MLD-Grv 820-17-30-MLD-Grv | Sprocket 17 Teeth moulded-grv | 104 |
2 | 820-21-25-MLD-Grv 820-21-30-MLD-Grv 820-21-35-MLD-Grv | Sprocket 21 Teeth moulded-grv | 129 |
3 | 820-25-25-MLD-Grv 820-25-30-MLD-Grv 820-25-35-MLD-Grv | Sprocket 25 Teeth moulded-grv | 153 |
