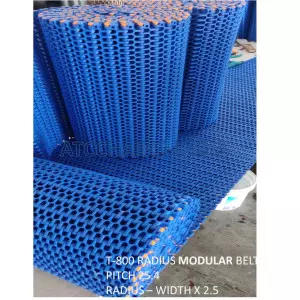

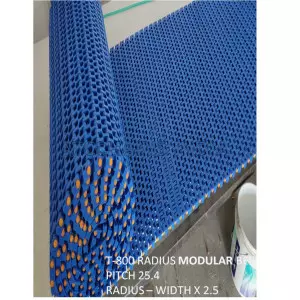

T-800 Radius Modular Belt
T-800 Radius Modular Belt Details
| MAIN APPLICATION | Food,beverage N Pharmaceutical industry etc,such as transportations of bottles. |
| MATERIAL | POM |
| MATERIAL | PP |
| WORKING LOAD(25°c) | 10500N /M |
| WORK TEMP | -40°c to +90°c |
| OPEN AREA | 42 % |
| PITCH=25.4 MM | WIDTH=228.5 MM |
T-800 Sprockets
Mat.: Polyamide PA6, Machined, high precision, matching well
| Code | Teeth No. | PD | OD | Bore/mm |
| l-T-800-6-20 | 6 | 50.8 | 54.6 | 20 |
| l-T-800-6-25 | 25 | |||
| l-T-800-6-30 | 30 | |||
| l-T-800-12-20 | 12 | 98.1 | 102 | 20 |
| l-T-800-12-25 | 25 | |||
| ‘.-T-800-12-30 | 30 | |||
| l-T-800-12-35 | 35 | |||
| l-T-800-16-25 | 16 | 130.2 | 134 | 25 |
| l-T-800-16-30 | 30 | |||
| l-T-800-16-35 | 35 | |||
| l-T-800-16-40 | 40 | |||
| l-T-800-20-25 | 20 | 162.4 | 164.2 | 25 |
| l-T-800-20-30 | 30 | |||
| l-T-800-20-35 | 35 | |||
| l-T-800-20-40 | 40 |
